- Dual Air filter, conducting double filtration,more suitable for rough road
- Flexible hydraulic steering system
- Security to meet off-road conditions
- Minimum ground clearance vehicle reaches 220mm, through greatly increased
- Off-road design: lengthened wheelbase and wider front and rear track with great stability
- Vertical high exhaust, preventing blowing dusts everywhere
- High ground clearance through sexual

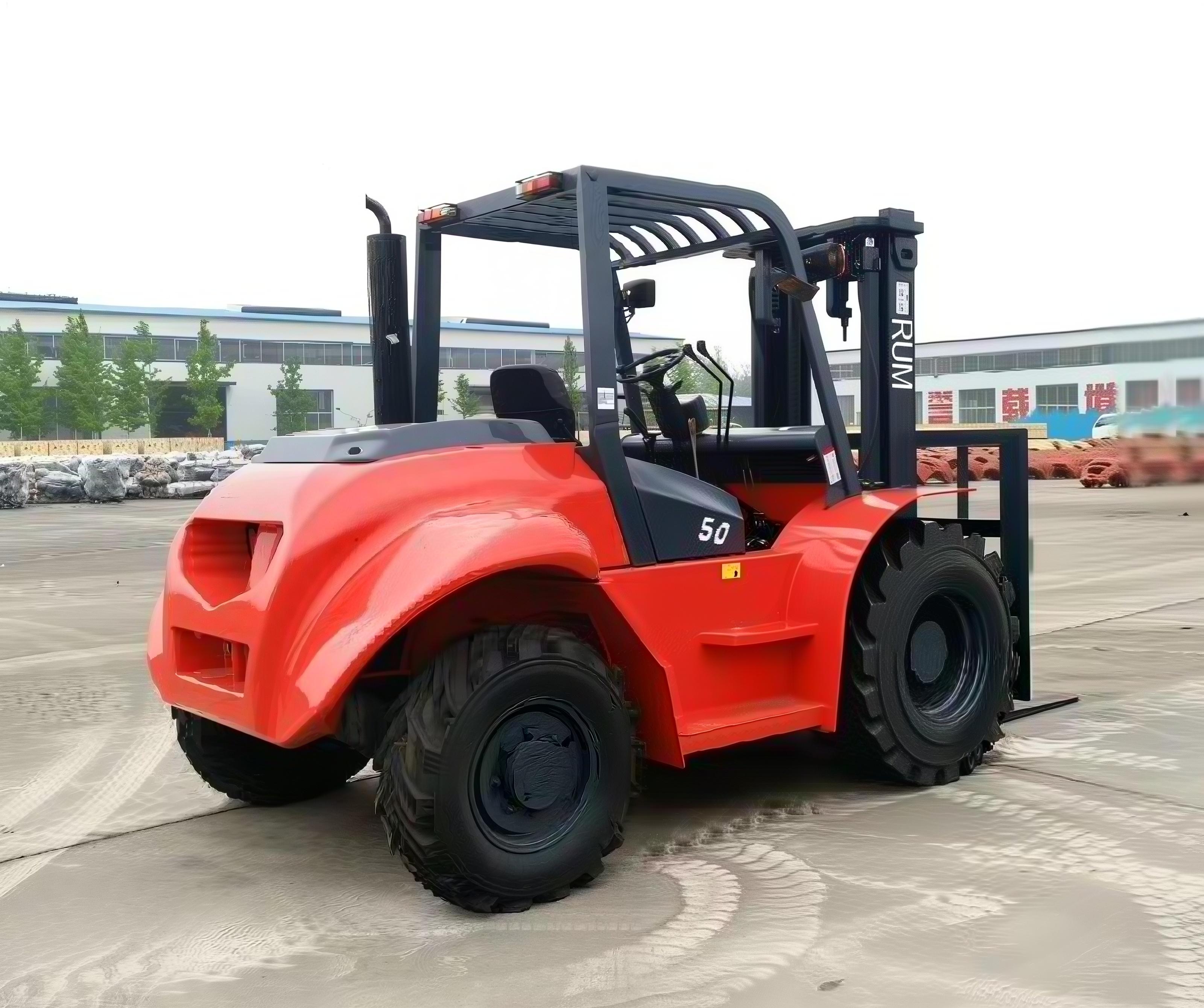

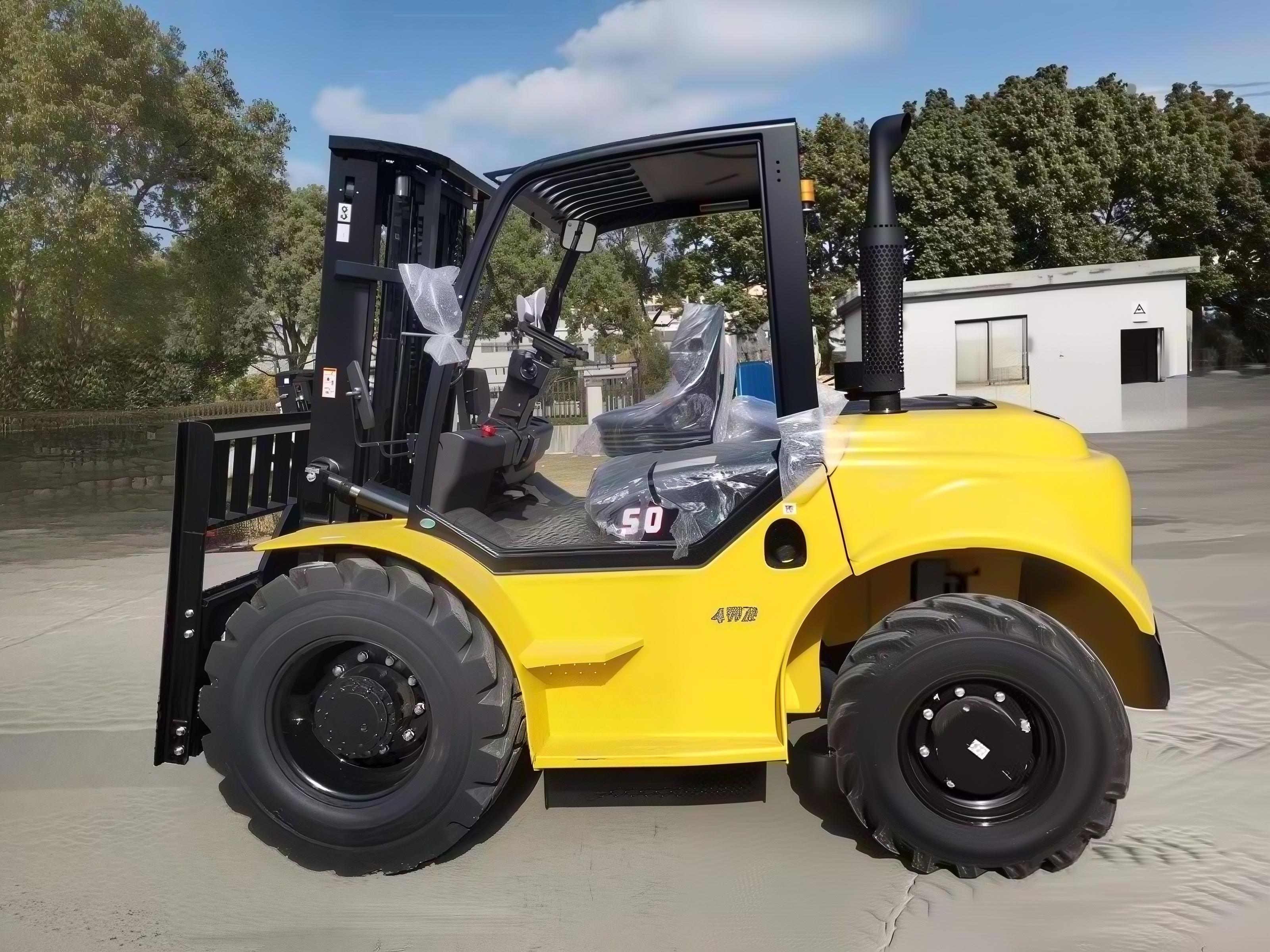

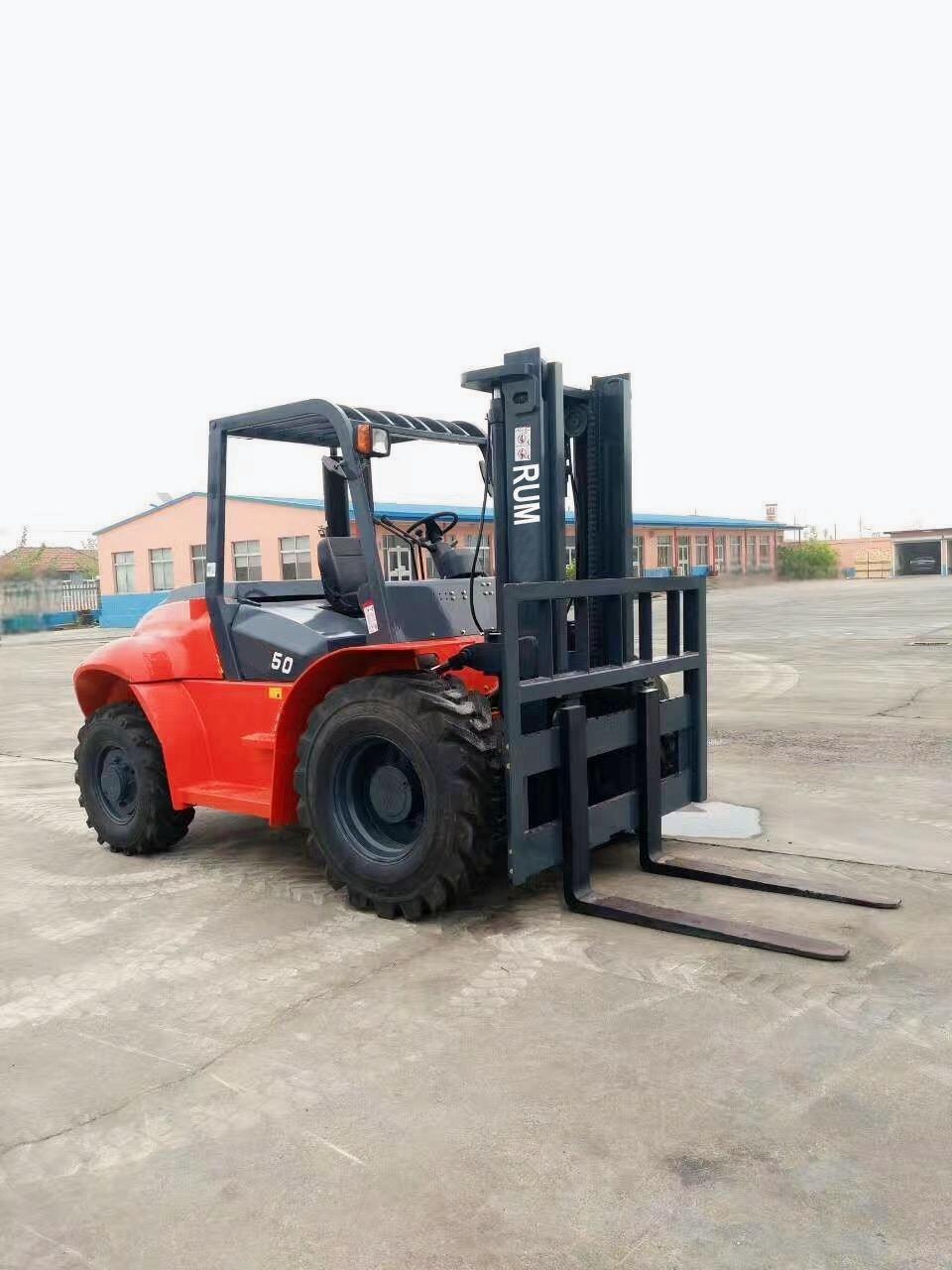

CPCY50-CPCY100
|
Model |
CPCY50 |
CPCY70 |
CPCY100 |
|
Rated load (kg) |
5000 |
7000 |
10000 |
|
Lifting height (mm) |
3000 |
3000 |
3000 |
|
Load center |
600 |
600 |
600 |
|
Without Pallet fork Length (mm) |
4420 |
4420 |
5425 |
|
Width (mm) |
2185 |
2200 |
2620 |
|
Max. height To the cab top (mm) |
3100 |
3100 |
3400 |
|
Mast Tilt Angle(Front/Rear) |
6/12 |
6/12 |
6/12 |
|
Wheelbase (mm) |
2185 |
2185 |
2745 |
|
Turning radius (mm) |
5290 |
5290 |
5500 |
|
Self weight |
7900 |
8760 |
14500 |
|
Standard Engine brand |
FAW 4DX21-72 |
FAW 4DX22-96 |
FAW CA6110 |
|
Transmission |
Automatic 2F/2R |
||
|
Unload Max speed (km/H) |
25 |
25 |
33 |
|
Max. Grade ability (Laden) % |
22 |
22 |
20 |
|
Fork size L×W×T (mm) |
1520*150*55 |
1520*150*55 |
1820*175*80 |
|
Min. ground clearance (mm) |
285 |
285 |
390 |
