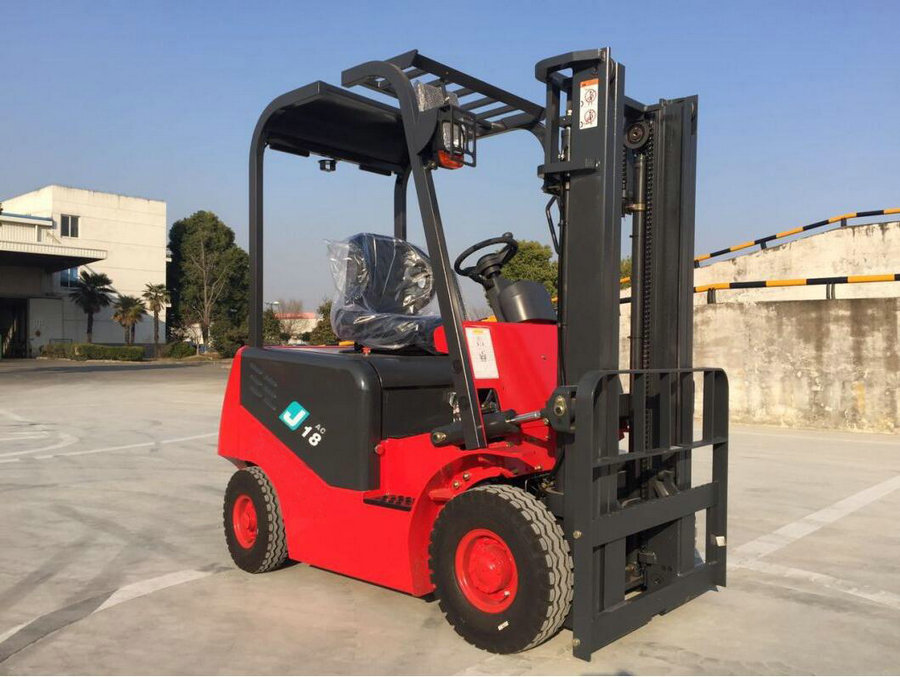

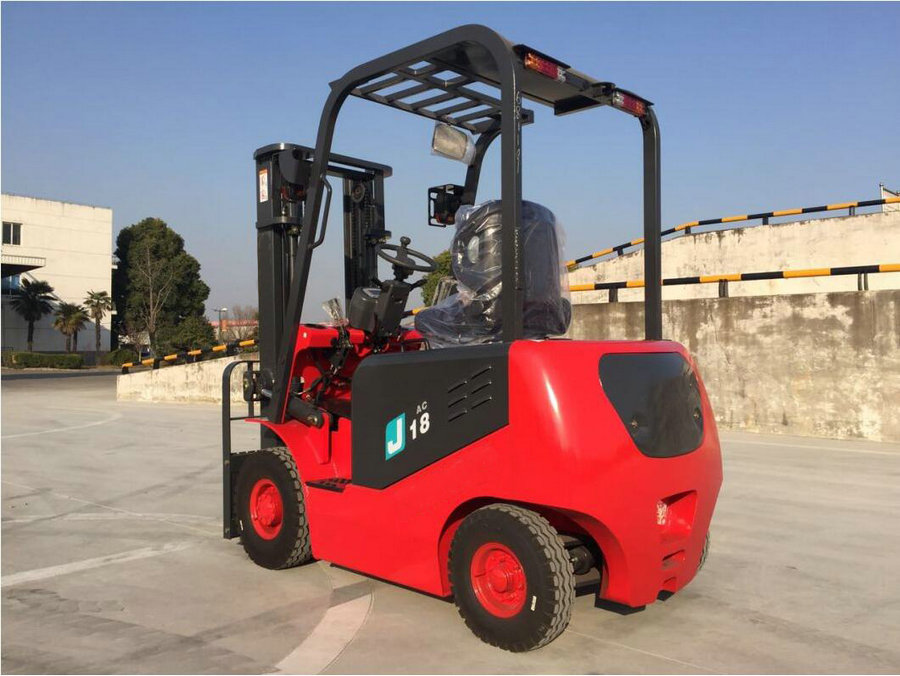

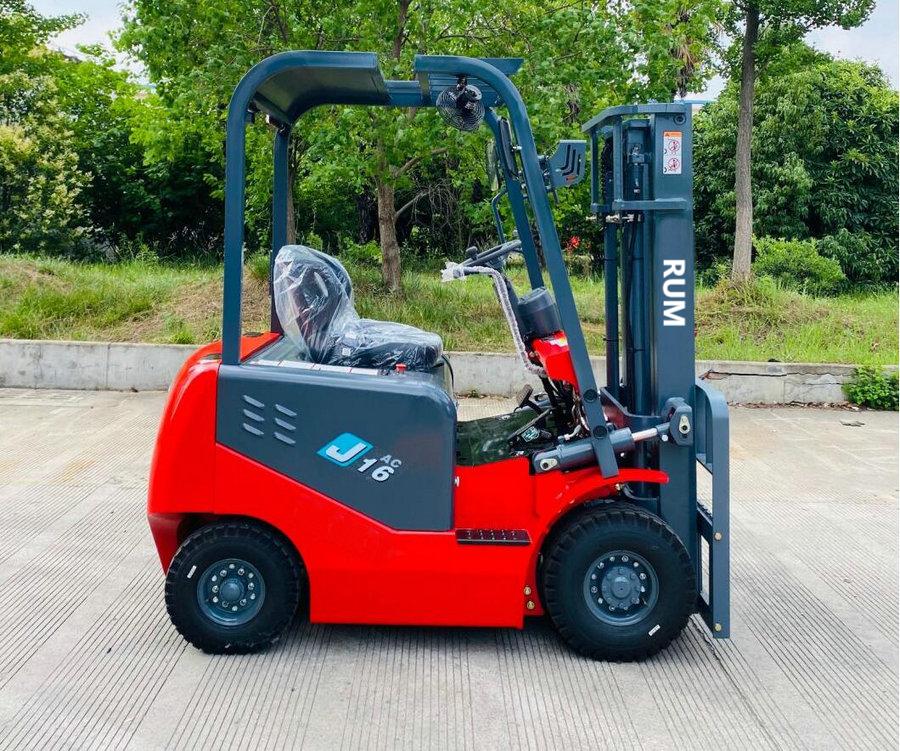

1-1.8 ton Electric Forklift advantages:
Improved driver's view
-
Standard configuration of wide view mast, compact structure of mast and tube pulley block;
-
Overhead guard with large arc and grid tray with optimized angle enlarge driver's upper view.
-
Choose to use chinese battery, and it can be taken out easily(two way,From top and from side)
-
LED lamp
-
Famous brand battery and charger
-
Curtis or Zapi AC controller
-
Reasonable structure,better heat dissipation for controller
-
Battery water automatic replenish for optional
-
Forklift With Powerful Ac driving motor applied to reduce maintenance cost and increase the overall performance.
-
Certificate: ISO 9001;ISO 14001, CE
-
HS Code: 84271090
Manufacturer |
|
RUMLIFT |
||||
Model |
|
FB10 |
FB15 |
FB18 |
||
Rated capacity |
kg |
1000 |
1500 |
1800 |
||
Load center |
mm |
500 |
500 |
|||
Power type |
|
Battery |
||||
Tire type |
Front/Rear |
|
Pneumatic |
|||
Wheels |
Front/Rear |
|
2x2 |
|||
Lift height |
mm |
3000 |
||||
Fork size |
L*W*T |
mm |
920x100x40 |
|||
Fork outside spread (Min./Max.) |
|
mm |
200/968 |
|||
Mast tilt angle |
Fwd/Bwd |
deg |
6/12 |
|||
Overall length (without fork) |
mm |
2150 |
||||
Overall width |
mm |
1090 |
||||
Mast height fork lowered |
mm |
1995 |
||||
Overall height fork raised |
mm |
3945 |
||||
Overall height (overhead guard) |
mm |
2170 |
||||
Turning radius (outside) |
mm |
1950 |
||||
Wheel base |
mm |
1380 |
||||
Tread |
Front |
mm |
890 |
|||
Rear |
mm |
920 |
||||
Min. Under-clearance (full load / no load ) |
Bottom of mast |
mm |
95/110 |
|||
Bottom of frame |
mm |
95/105 |
||||
Speed |
Travel speed |
With load |
km/h |
11.5 |
11 |
11 |
Without load |
km/h |
13.5 |
13 |
13 |
||
Lifting speed |
With load |
mm/sec |
300 |
285 |
285 |
|
Without load |
mm/sec |
400 |
390 |
390 |
||
Max. Drawbar pull |
With/without load |
Ken |
6 |
6.5 |
6.5 |
|
Max.Gradeability |
With/without load |
% |
15 |
|||
Self weight |
Kg |
2900 |
3120 |
3200 |
||
Tyre |
Size |
Front |
|
6.5-10-10PR |
||
Rear |
|
5.00-8-8PR |
||||
Battery |
Voltage |
V |
48 |
|||
controller |
|
USA CURTIS electric controller |
||||
