- LPG&Gasoline Forklift's power is LPG or both,can be dual fuel or single fuel .Usually it equip The operator`s legroom is twice to other series with optimized construction;
- Conveniently behavior with electro-hydraulic direction changing lever and automobile type double joystick combined switch;
- Small diameter steering wheel reduces driver`s left shoulder`s fatigue and makes driving comfortable;
- LPG & Gasoline combustion fully, improve the life of engine three times. It`s more clean than Diesel Forklift,and can work longer than Electric Forklift.
- Suspension seat with handrail and seat belt ensure the operator`s safety and comfort;
- The dynamic braking system decreases the braking force sharply

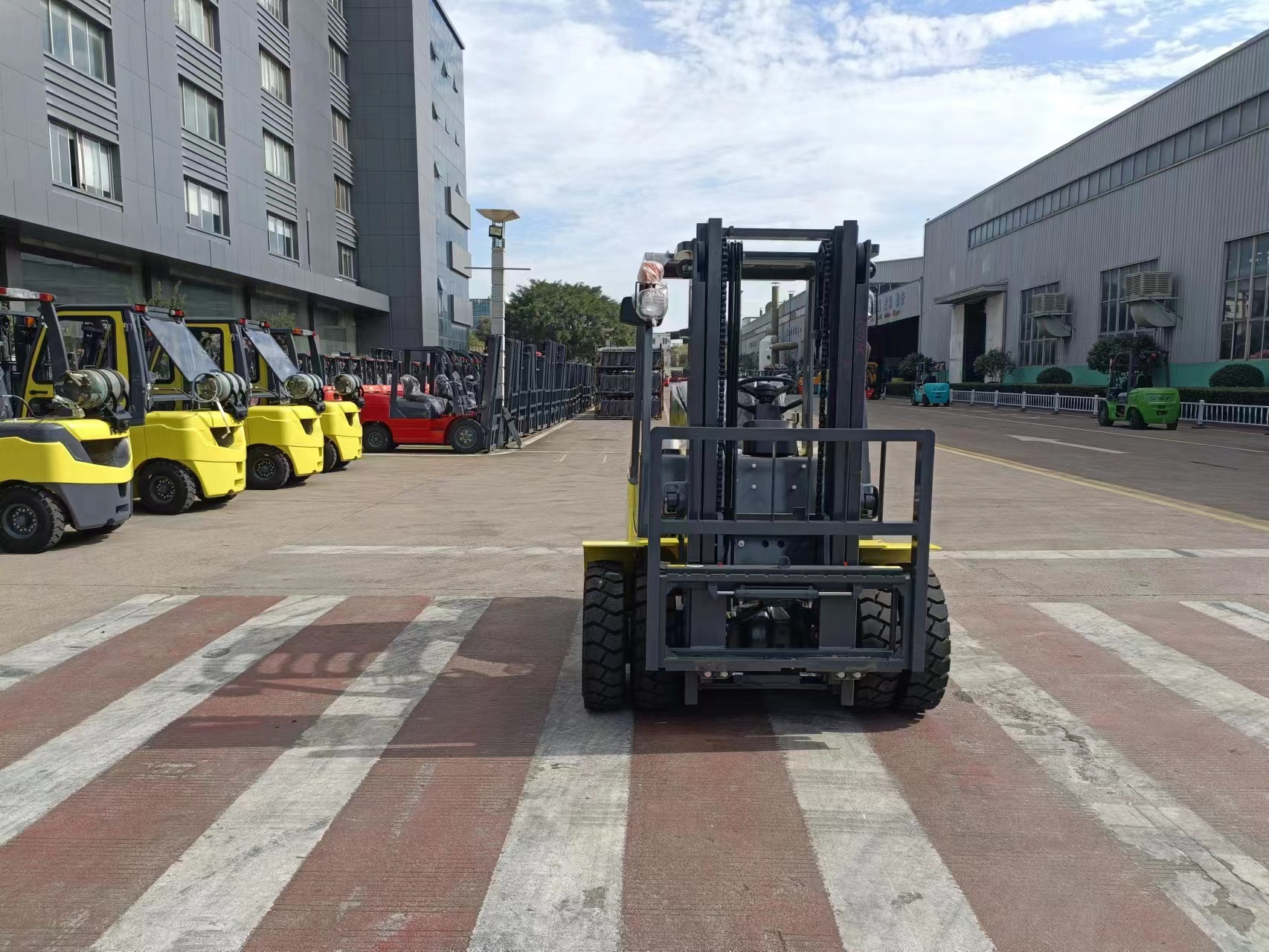

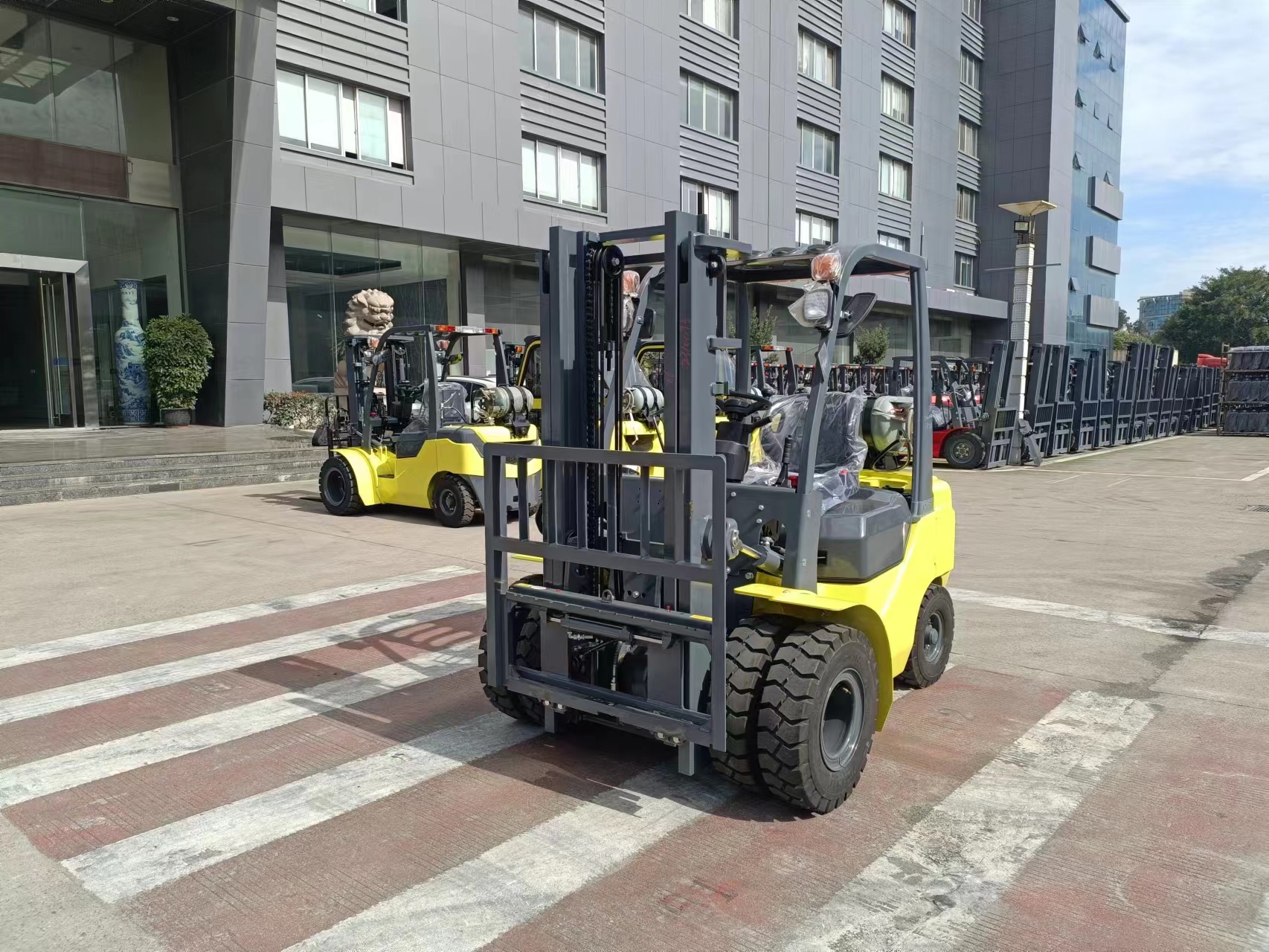

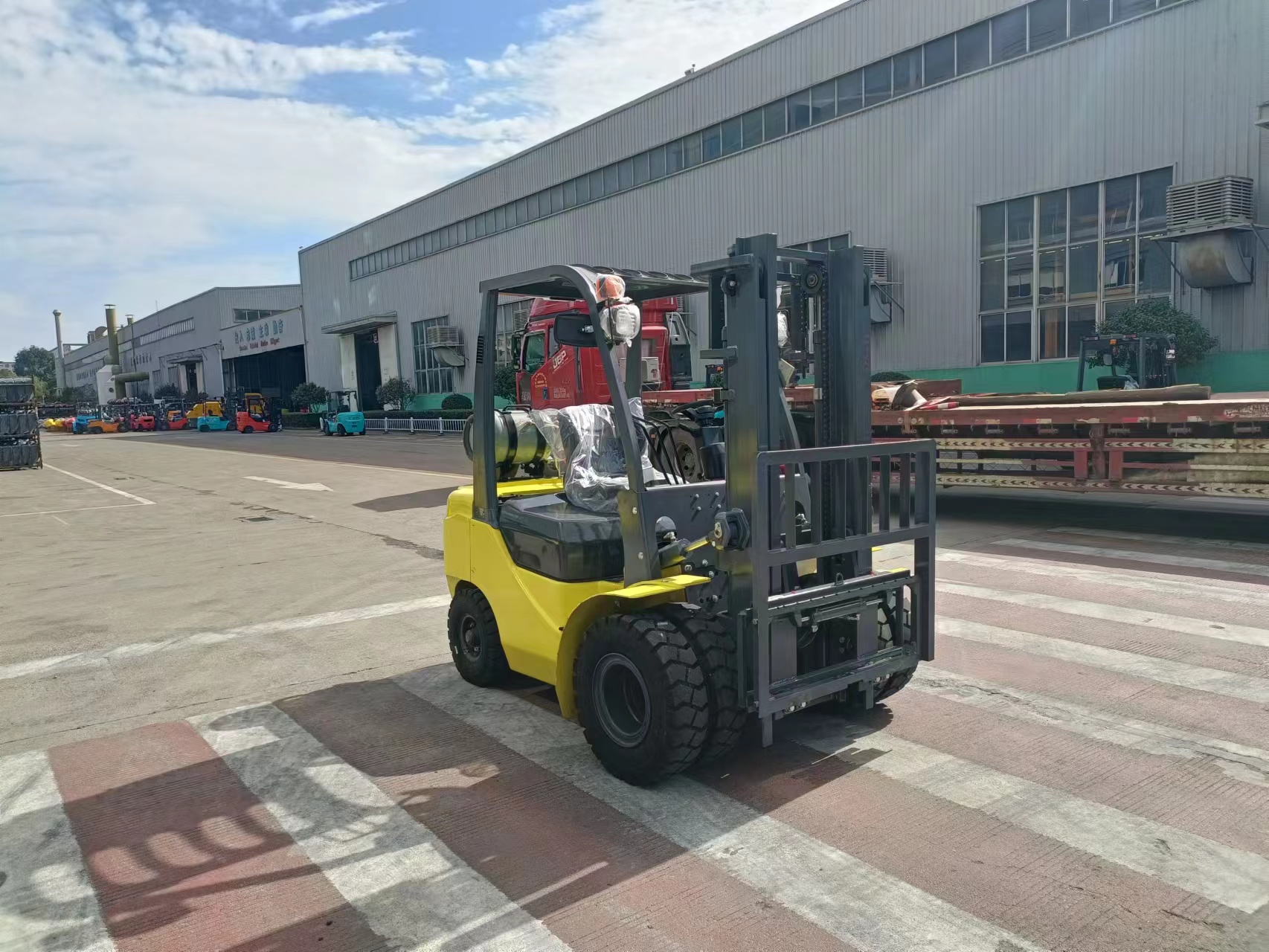

FG15L-FG18L
|
Manufacturer |
|
Rum |
||||
|
Model |
|
FG10L |
FG15L |
FG18L |
||
|
Rated capacity |
kg |
1000 |
1500 |
1800 |
||
|
Load center |
mm |
500 |
||||
|
Gearbox change speed type |
|
Hydraulic/Mechanical |
||||
|
Power type |
|
Gasoline / LPG |
||||
|
Tire type |
Front/Rear |
|
Pneumatic |
|||
|
Wheels |
Front/Rear |
|
2/2 |
|||
|
Lift height |
mm |
3000 |
||||
|
Free lift height |
mm |
162 |
||||
|
Fork size |
L*W*T |
mm |
920x100x40 |
|||
|
Mast tilt angle |
Fwd/Bwd |
deg |
6/12 |
|||
|
Overall length (without fork) |
mm |
2180 |
2235 |
2270 |
||
|
Overall width |
mm |
1080 |
||||
|
Mast height fork lowered |
mm |
1995 |
||||
|
Overall height fork raised |
mm |
4042 |
||||
|
Overall height (overhead guard) |
mm |
2075 |
||||
|
Turning radius (outside) |
mm |
1890 |
1960 |
2000 |
||
|
Load distance (centerline of front axle to front face of forks) |
mm |
429 |
||||
|
Wheel base |
mm |
1400 |
||||
|
Min. Under-clearance (full load / no load ) |
Bottom of mast |
mm |
95/110 |
85/110 |
||
|
Bottom of frame |
mm |
105/115 |
||||
|
Speed |
Travel speed |
With load |
km/h |
13.5 |
||
|
Without load |
km/h |
14.5 |
||||
|
Lifting speed |
With load |
mm/sec |
450 |
|||
|
Without load |
mm/sec |
510 |
||||
|
Max. Drawbar pull |
With/without load |
kg |
1250/850 |
1250/850 |
1100/1000 |
|
|
1650/850 |
1650/850 |
1350/1000 |
||||
|
Max.Gradeability |
With/without load |
% (fan) |
20 |
|||
|
21 |
||||||
|
Self weight |
kg |
2340 |
2740 |
2943 |
||
|
Tyre |
Size |
Front |
|
6.50-10-10PR |
||
|
Rear |
|
5.00-8-8PR |
5.00-8-10PR |
|||
