- Dual Air filter, conducting double filtration,more suitable for rough road
- Flexible hydraulic steering system
- Security to meet off-road conditions
- Minimum ground clearance vehicle reaches 220mm, through greatly increased
- Off-road design: lengthened wheelbase and wider front and rear track with great stability
- High ground clearance through sexual
- Vertical high exhaust, preventing blowing dusts everywhere

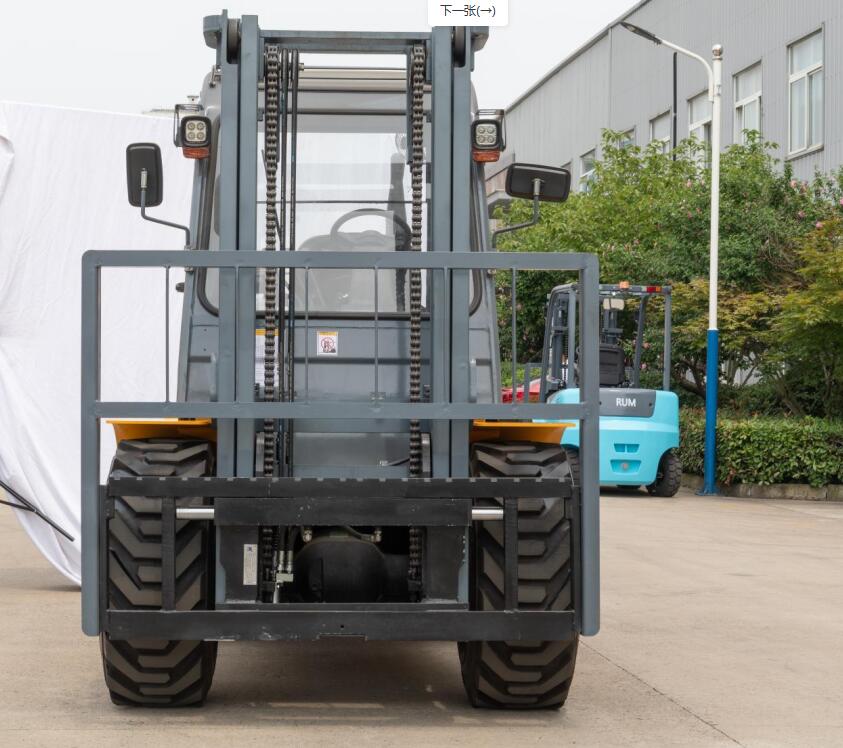

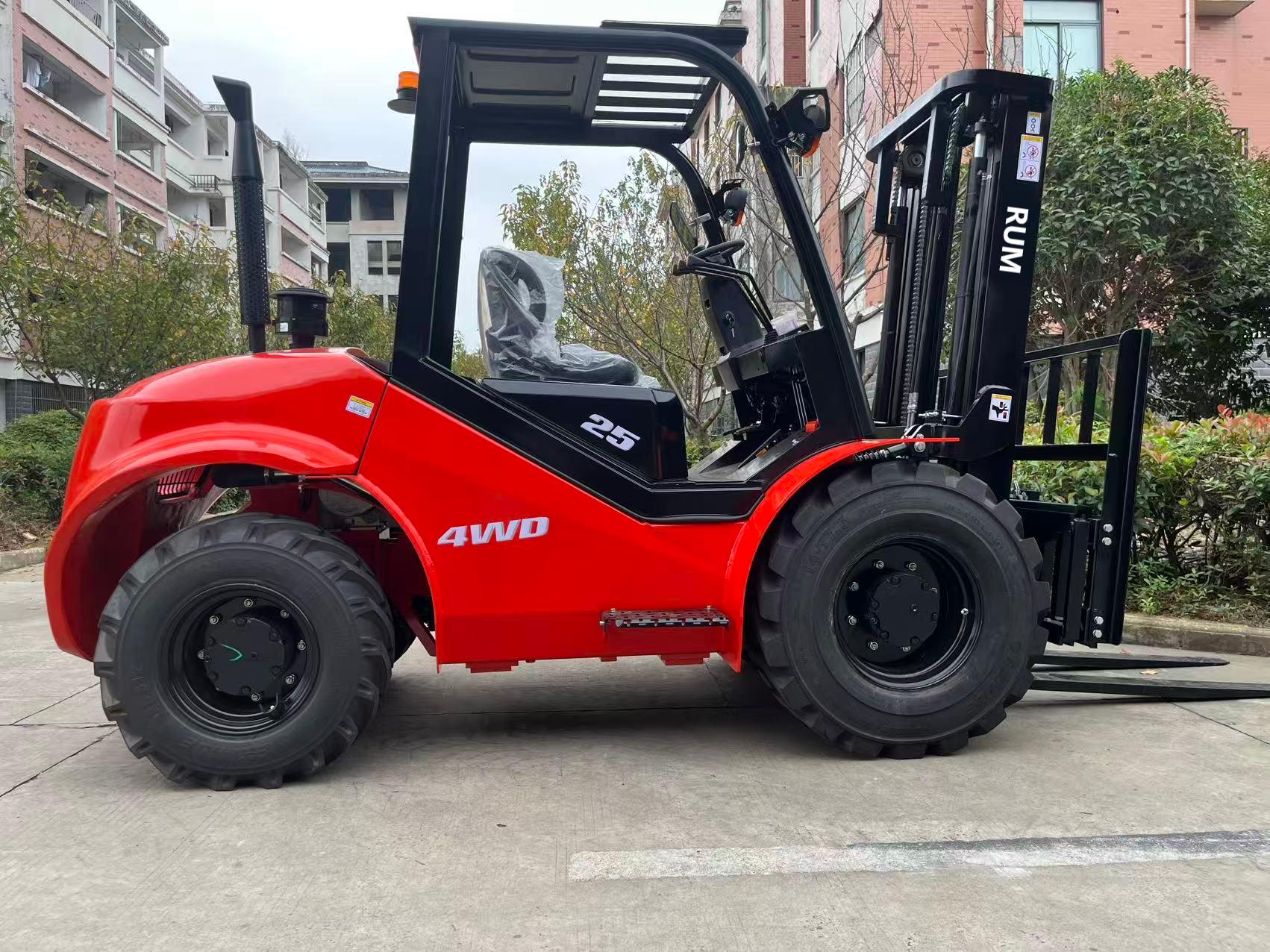

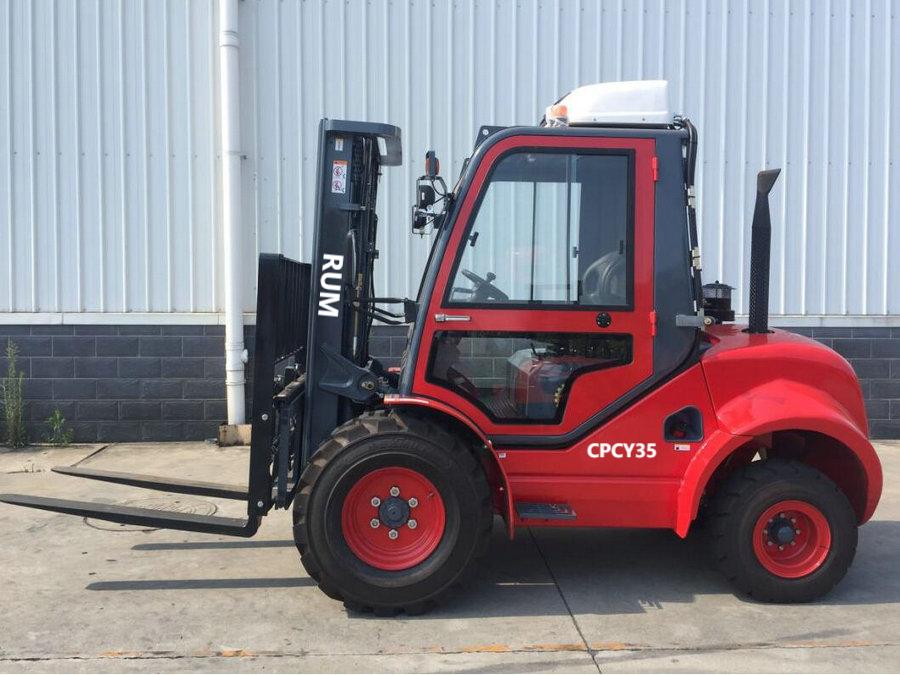

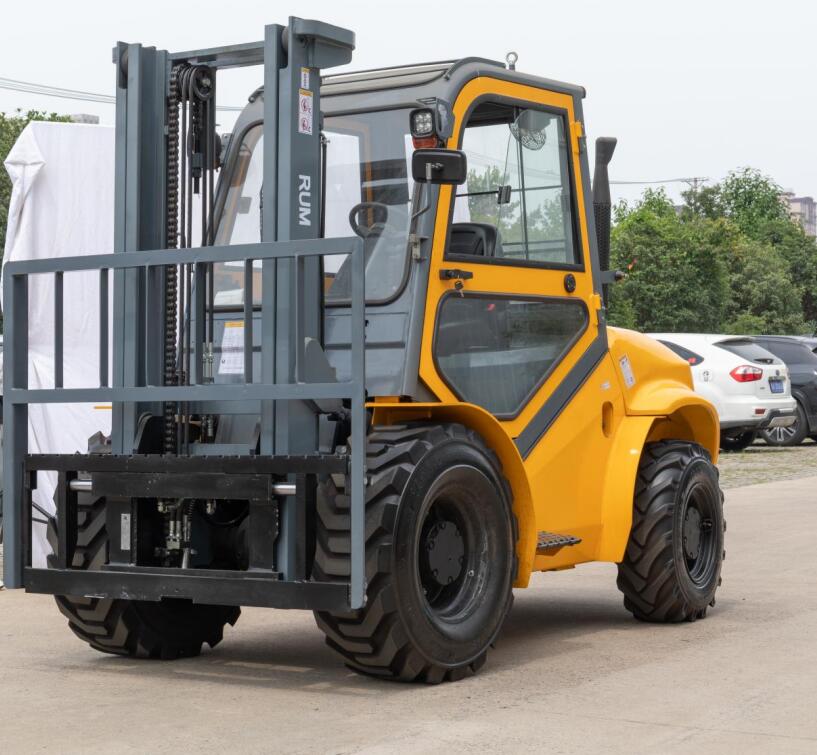

CPCY25-CPCY35
|
Model |
CPCY30 |
CPCY35 |
CPCY25 |
|
|
Rated load（kg) |
3000 |
3500 |
2500 |
|
|
Load center mm |
565 |
565 |
565 |
|
|
Ascent(mm) |
|
3000 |
3000 |
3000 |
|
The freedom lifts the altitude mm |
150 |
150 |
150 |
|
|
Length of fork mm |
1070 |
1070 |
1070 |
|
|
Gate incline front/after （°） |
6/12 |
6/12 |
6/12 |
|
|
Lifts most greatly the intensity(full load) mm/s |
372 |
372 |
372 |
|
|
Running rate km/h |
Advance:ⅠFiles/IIFiles |
8/16 |
8/16 |
8/16 |
|
Backlash:ⅠFiles/IIFiles |
8/16 |
8/16 |
8/16 |
|
|
Biggest climbing power (full load) % |
50 |
50 |
50 |
|
|
Biggest force of traction （Kgf) |
2587 |
2587 |
2587 |
|
|
Biggest deflection angle （°） |
±35 |
±35 |
±35 |
|
|
Rear axle of car angle of oscillation （°） |
±12 |
±12 |
±12 |
|
|
Most steep bank radius mm |
4500 |
4500 |
4500 |
|
|
External dimensions |
Length(mm) |
4585 |
4585 |
4585 |
|
Width(mm) |
1700 |
1700 |
1700 |
|
|
Height(mm) |
2720 |
2720 |
2720 |
|
|
Smallest ground clearance mm |
260 |
260 |
260 |
|
|
self weight kg |
3318 |
3568 |
3268 |
|
